Vertical GPU Ready
Supports vertical GPU installation to highlight premium graphics and aesthetics.
✨ New Arrivals Just Dropped!Explore

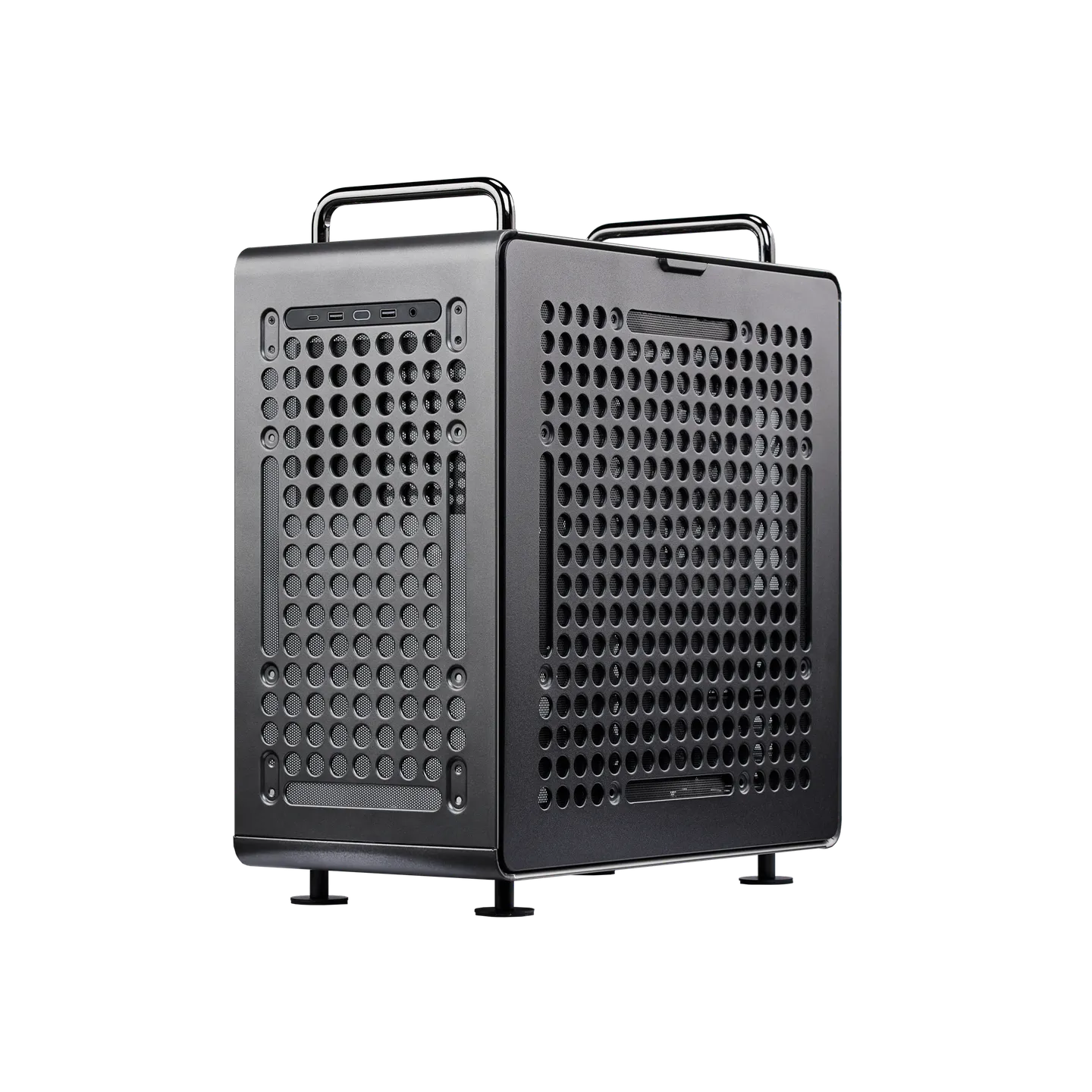

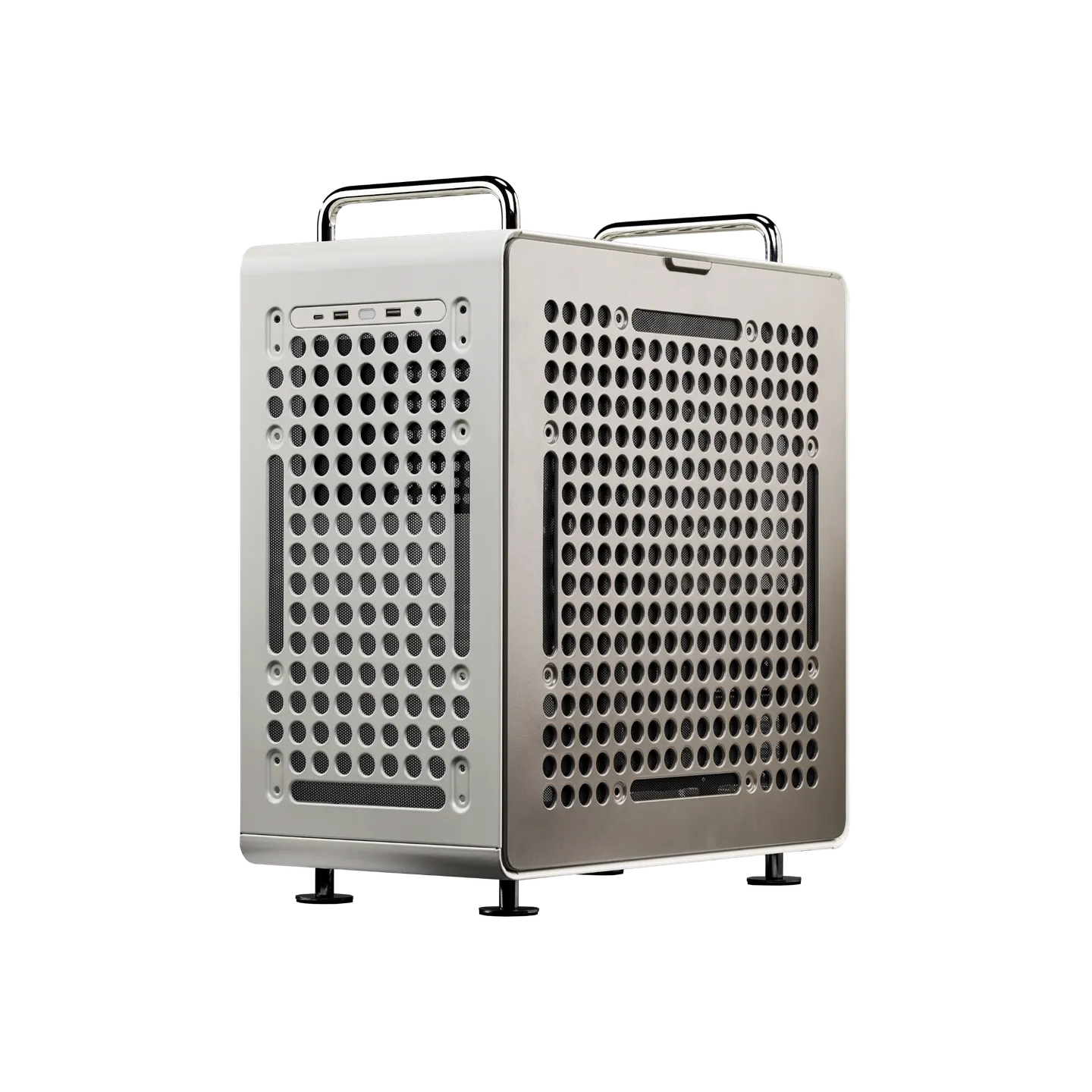

QUBE 540
Compact Case, Unlimited Creativity
QUBE 540
Designed for creators, gamers, and DIY builders.
Compact Yet Capable
Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.
Flexible Orientation Design
Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.
Create Your Own Layout
A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.
Repositionable I/O Panel and Movable Handles
Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.
Versatile Modular Layout
Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.
Cooler Master: FreeForm Playground
We’re teaming up with Printables to challenge makers worldwide. Take our modular hardware and make your own Qube 540!
Specifications
- Product NameQUBE 540
- Model NumberStardust Iron: Q540-MGNN-S00
- Model NumberMoonstone: Q540-LGNN-S00

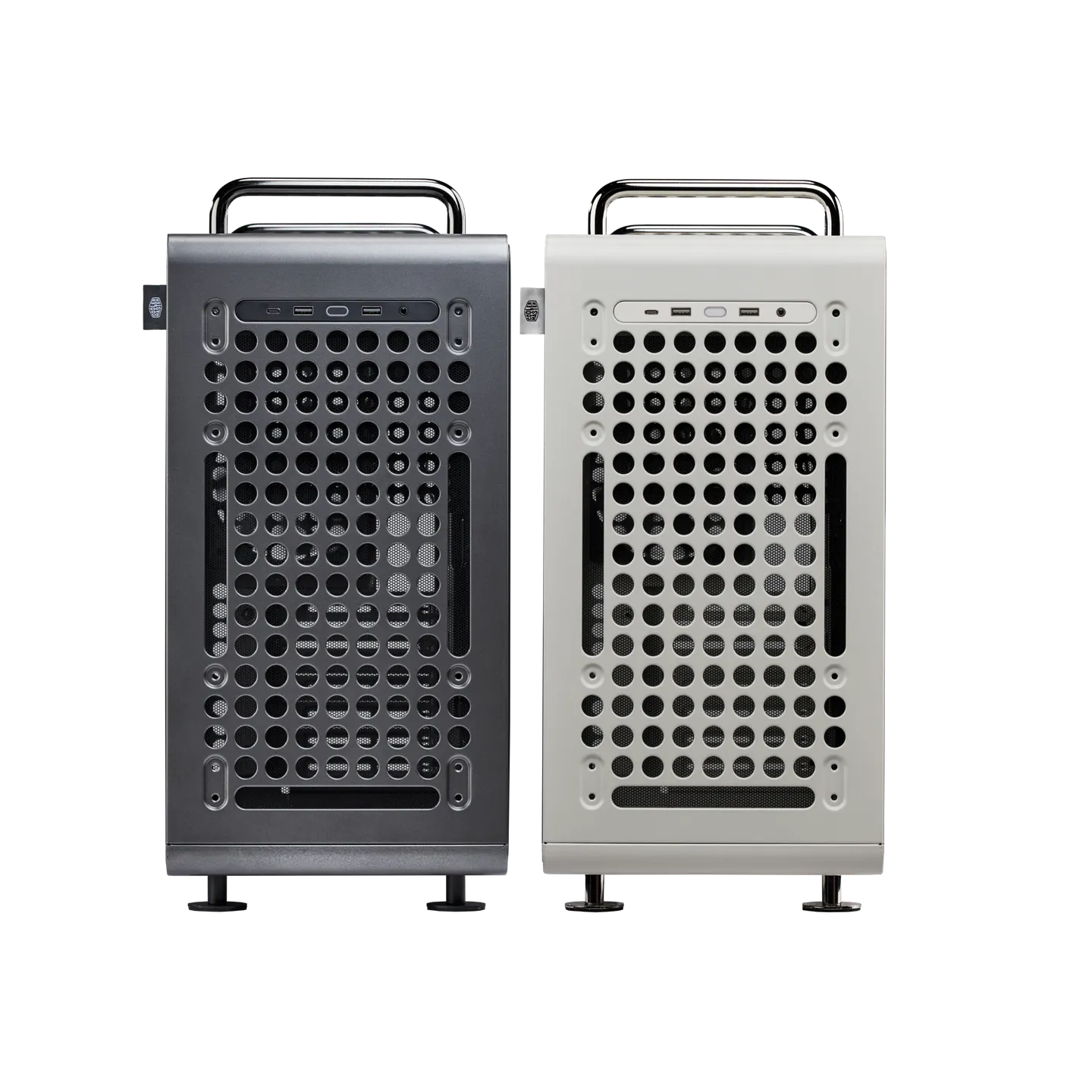

- Color(s)Stardust Iron / Moonstone
- Materials - ExteriorSteel
- Material - Side Panel (Right)Steel
- Material - Side Panel (Left)TG
- Dimensions (L x W x H)Incl. Protrusions: 438.5 x 225 x 492.1 mm
- Dimensions (L x W x H)Excl. Protrusions: 425 x 225 x 425 mm
- Volume (w/o protrusions)40.64 L
- Volume (with panel, protrusions and feet)48.55 L
- Motherboard SupportITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
- Expansion Slots7
- Drive Bays - 5.25" ODDN/A
- Drive Bays - 3.5" HDD1 (Shared 3.5" and 2.5" mounting on PSU bracket)
- Drive Bays - 2.5" SSD2 (Max. 5)
- I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
- I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack
- Fan Support - Front3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Top3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Rear1x 120mm
- Fan Support - Bottom3 x 120 mm / 2 x 140 mm
- Preinstalled Fan(s) - FrontN/A
- Preinstalled Fan(s) - TopN/A
- Pre-installed Fans - Rear1x 120mm Black Fan
- Radiator Support - Front140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Top140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Rear120 mm
- Radiator Support - Bottom140 / 280 / 360mm (w/o I/O panel)
- Clearances - CPU Cooler172 mm
- Clearances - Power Supply200 mm
- Clearances - Graphics Card415 mm (w/o Front Fan)
- Cable Routing - Behind Motherboard Tray27 mm
- Dust FiltersTop / Bottom / Front
- Power Supply SupportATX / SFX
- Warranty2 years
- Note-
- SeriesQUBE Series
- SizeMid Tower
Product Information
Product Information
Shipping & Returns
Shipping & Returns
QUBE 540
QUBE 540
Compact Case, Unlimited Creativity
QUBE 540
Designed for creators, gamers, and DIY builders.
Compact Yet Capable
Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.
Flexible Orientation Design
Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.
Create Your Own Layout
A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.
Repositionable I/O Panel and Movable Handles
Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.
Versatile Modular Layout
Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.
Vertical GPU Ready
Supports vertical GPU installation to highlight premium graphics and aesthetics.
Cooler Master: FreeForm Playground
We’re teaming up with Printables to challenge makers worldwide. Take our modular hardware and make your own Qube 540!
Specifications
- Product NameQUBE 540
- Model NumberStardust Iron: Q540-MGNN-S00
- Model NumberMoonstone: Q540-LGNN-S00
- Color(s)Stardust Iron / Moonstone
- Materials - ExteriorSteel
- Material - Side Panel (Right)Steel
- Material - Side Panel (Left)TG
- Dimensions (L x W x H)Incl. Protrusions: 438.5 x 225 x 492.1 mm
- Dimensions (L x W x H)Excl. Protrusions: 425 x 225 x 425 mm
- Volume (w/o protrusions)40.64 L
- Volume (with panel, protrusions and feet)48.55 L
- Motherboard SupportITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
- Expansion Slots7
- Drive Bays - 5.25" ODDN/A
- Drive Bays - 3.5" HDD1 (Shared 3.5" and 2.5" mounting on PSU bracket)
- Drive Bays - 2.5" SSD2 (Max. 5)
- I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
- I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack
- Fan Support - Front3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Top3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Rear1x 120mm
- Fan Support - Bottom3 x 120 mm / 2 x 140 mm
- Preinstalled Fan(s) - FrontN/A
- Preinstalled Fan(s) - TopN/A
- Pre-installed Fans - Rear1x 120mm Black Fan
- Radiator Support - Front140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Top140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Rear120 mm
- Radiator Support - Bottom140 / 280 / 360mm (w/o I/O panel)
- Clearances - CPU Cooler172 mm
- Clearances - Power Supply200 mm
- Clearances - Graphics Card415 mm (w/o Front Fan)
- Cable Routing - Behind Motherboard Tray27 mm
- Dust FiltersTop / Bottom / Front
- Power Supply SupportATX / SFX
- Warranty2 years
- Note-
- SeriesQUBE Series
- SizeMid Tower
Select Color
From $21.68
Original: $61.95
-65%QUBE 540—
$61.95
$21.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Compact Case, Unlimited Creativity
QUBE 540
Designed for creators, gamers, and DIY builders.
Compact Yet Capable
Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.
Flexible Orientation Design
Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.
Create Your Own Layout
A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.
Repositionable I/O Panel and Movable Handles
Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.
Versatile Modular Layout
Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.
Vertical GPU Ready
Supports vertical GPU installation to highlight premium graphics and aesthetics.
Cooler Master: FreeForm Playground
We’re teaming up with Printables to challenge makers worldwide. Take our modular hardware and make your own Qube 540!
Specifications
- Product NameQUBE 540
- Model NumberStardust Iron: Q540-MGNN-S00
- Model NumberMoonstone: Q540-LGNN-S00
- Color(s)Stardust Iron / Moonstone
- Materials - ExteriorSteel
- Material - Side Panel (Right)Steel
- Material - Side Panel (Left)TG
- Dimensions (L x W x H)Incl. Protrusions: 438.5 x 225 x 492.1 mm
- Dimensions (L x W x H)Excl. Protrusions: 425 x 225 x 425 mm
- Volume (w/o protrusions)40.64 L
- Volume (with panel, protrusions and feet)48.55 L
- Motherboard SupportITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
- Expansion Slots7
- Drive Bays - 5.25" ODDN/A
- Drive Bays - 3.5" HDD1 (Shared 3.5" and 2.5" mounting on PSU bracket)
- Drive Bays - 2.5" SSD2 (Max. 5)
- I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
- I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack
- Fan Support - Front3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Top3 x 120 mm (w/o I/O panel) / 2 x 140 mm
- Fan Support - Rear1x 120mm
- Fan Support - Bottom3 x 120 mm / 2 x 140 mm
- Preinstalled Fan(s) - FrontN/A
- Preinstalled Fan(s) - TopN/A
- Pre-installed Fans - Rear1x 120mm Black Fan
- Radiator Support - Front140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Top140 / 280 / 360 mm (w/o I/O panel)
- Radiator Support - Rear120 mm
- Radiator Support - Bottom140 / 280 / 360mm (w/o I/O panel)
- Clearances - CPU Cooler172 mm
- Clearances - Power Supply200 mm
- Clearances - Graphics Card415 mm (w/o Front Fan)
- Cable Routing - Behind Motherboard Tray27 mm
- Dust FiltersTop / Bottom / Front
- Power Supply SupportATX / SFX
- Warranty2 years
- Note-
- SeriesQUBE Series
- SizeMid Tower
