MasterLiquid ML360 SUB-ZERO (Refurbished - Like New)
Refurbished (LIKE NEW)

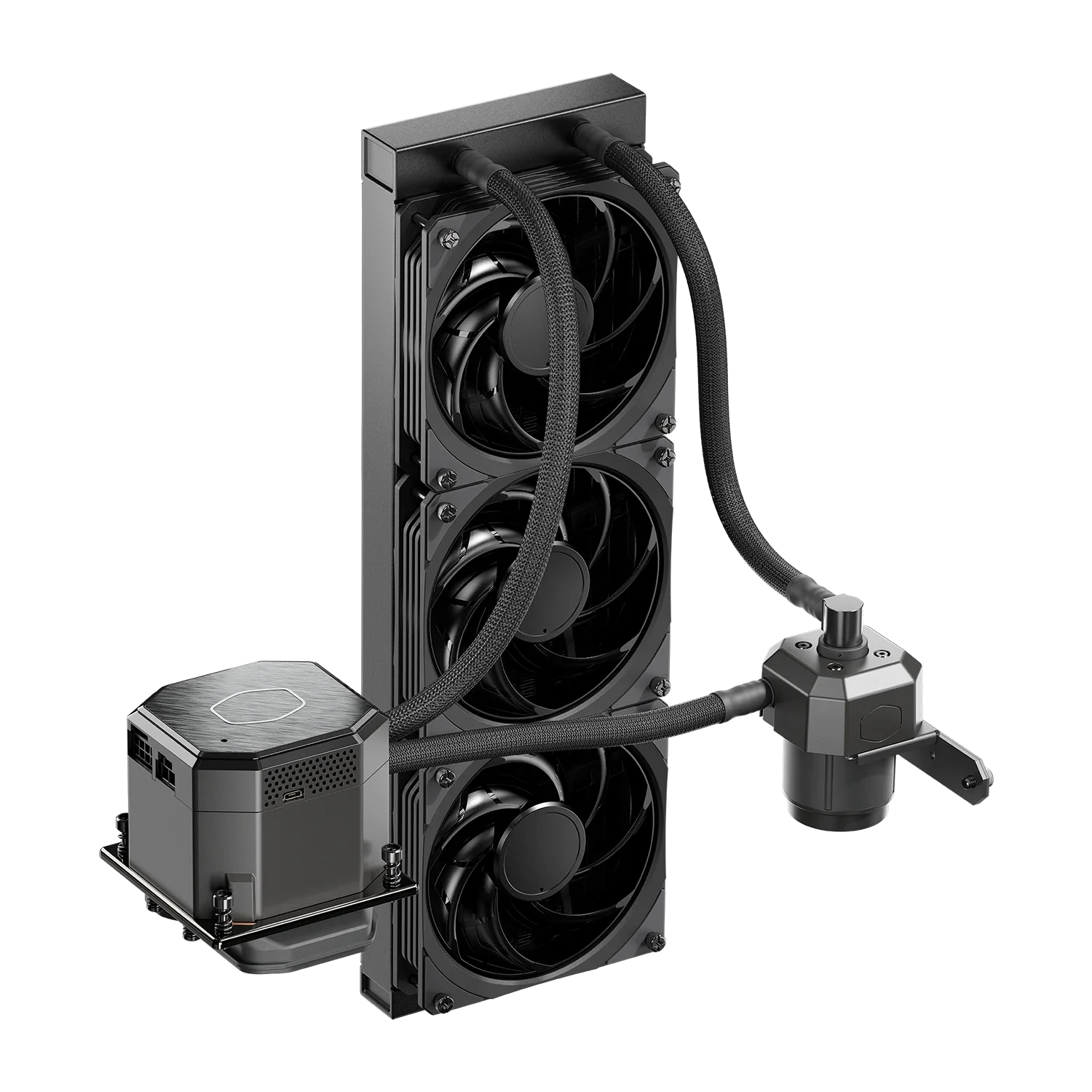

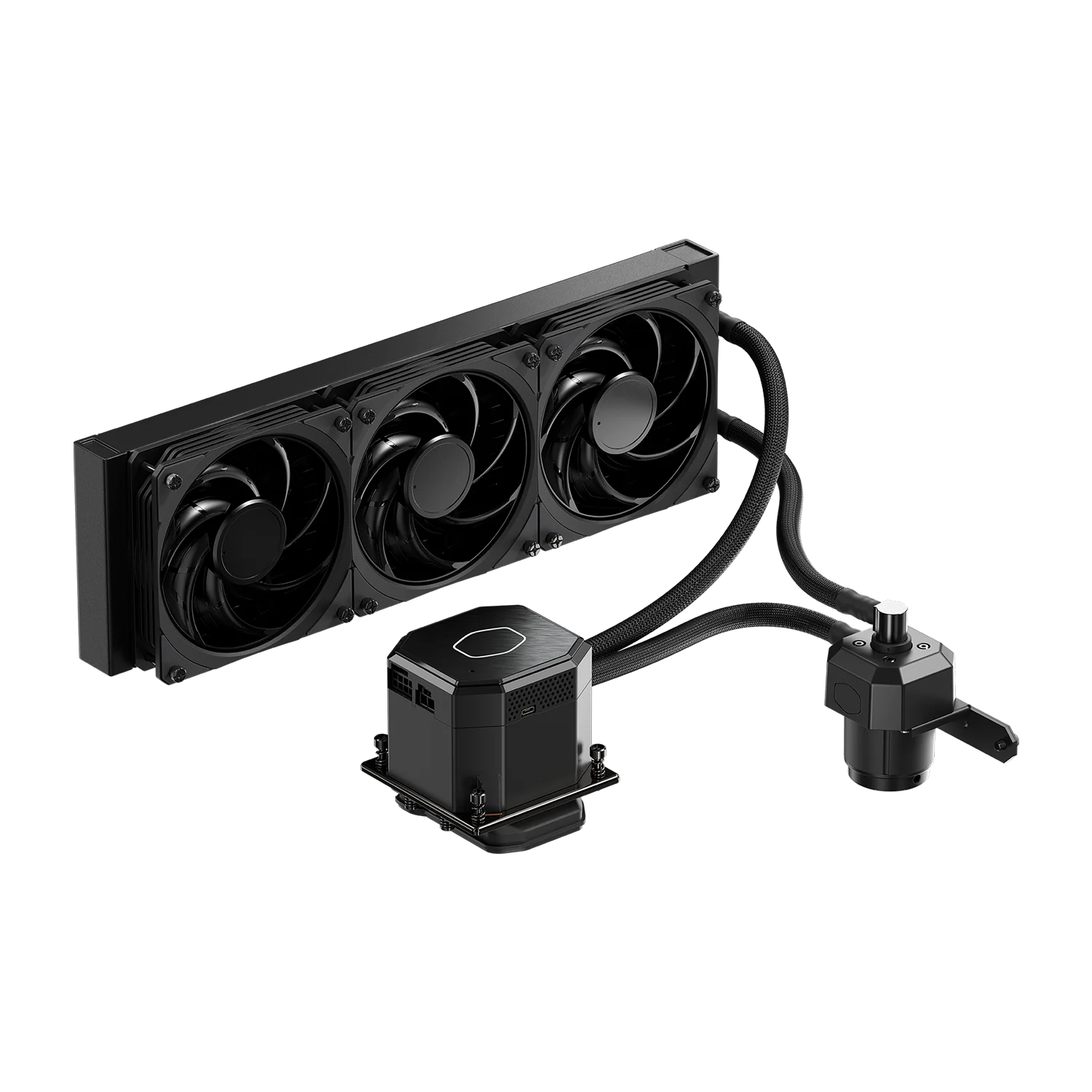

MasterLiquid ML360 SUB-ZERO
*This unit is classified as Refurbished (Like New). It was used solely for product photoshoot purposes and has never been installed, connected, or operated. The cooler is in original condition, fully inspected, and comes with all original accessories and packaging. A 2-year warranty.
The MasterLiquid ML360 Sub-Zero powered by Intel® Cryo Cooling Technology delivers a cooling solution unlike that of your traditional thermal solutions. Allowing the processor to be able to reach higher frequencies at lower voltages due to behavioral characteristics of silicon that can only be achieved through sub-ambient temperatures. Utilizing the unique combination of hardware, software and firmware to push the thermal limitations of your processor.
Improved and Enhanced Pump
Newly Designed Pump traditionally used in DIY cooling systems with high performance motor that has an enhanced repeller to dissipated heat from the TEC in a more efficiently.
KEY FEATURES
Sub-Ambient Cooling
Specifically designed using Thermoelectric Unit (TEC) to cool your processor and create the conditions that allow it to achieve low core count over-clocking.
Powered by Intel Cryo Cooling Technology
Designed with a simple user interface making it easy to understand and control the sub-ambient cooling potential.
Cryo-Clocking
Silicon can reach higher frequencies at lower voltages that can only be achieved through sub-ambient cooling. The concept of Cryo-Clocking is to push
2nd Generation Pump
Enhanced pump delivers higher liquid flow for exceptional heat removal.
RECOMMENDED INSTALLATION
A: Top Mounted 360 mm Radiator
B: Front Mounted Pump
To get the best performance for your system for you CPU we recommend a top installation of the 360mm radiator and a front installation of the pump. The fans are pre-installed on the radiator and pump bracket pre-attached (out-of-box).
SETTING UP OVERCLOCKING ON YOUR CPU
Overclocking your CPU doesn’t have to be complicated and can be achieved in 2 basic ways:
Overclocking through BIOS Settings
OR
Using Intel XTU Software
Specifications
- Product NumberMLZ-D36M-A19PK-12
- Exterior ColorBlack
- CPU SocketLGA1200
- Waterblock Dimensions89 x 79 x 86.7 mm / 3.5 x 3.1 x 3.4 inch
- Radiator MaterialAluminum
- Radiator Dimensions394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch
- Pump Dimensions57.3 x 57.3 x 92.2 mm / 2.3 x 2.3 x 3.6 inch
- Pump MTTF198,000 Hours
- Pump Noise Level< 35 dBA
- Power Connector4-Pin
- Pump Rated Voltage12 VDC
- Pump Rated Current1.0 A
- Pump Power Consumption13.8W (Max)
- Dimensions (L x W x H)120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch
- Fan Quantity3 PCS
- Fan LED TypeNon-LED
- Fan Speed650-1900 RPM ± 10%
- Fan Airflow59 CFM (Max)
- Fan Noise Level8 - 26 dBA
- Fan Pressure2.0 mmH₂O (Max)
- Fan Life Expectancy160,000 Hours
- Fan Power Connector4-Pin (PWM)
- Fan Rated Voltage12 VDC
- Total Power Consumption250 W
- RAM ClearanceN/A
- LED IndicatorRed --- Off line, Blue --- On, Green --- Cryo mode, Purple --- Unregulated
- Warranty5 years
- Cooler TypeLiquid Cooler
- SeriesMasterLiquid Maker
Downloads
- Product SheetDownload
- ManualDownload
- Operation Modes FAQDownload
- FAQ Help FileDownload
- Download Intel® Cryo Cooling Technology SoftwareDownload
